Description

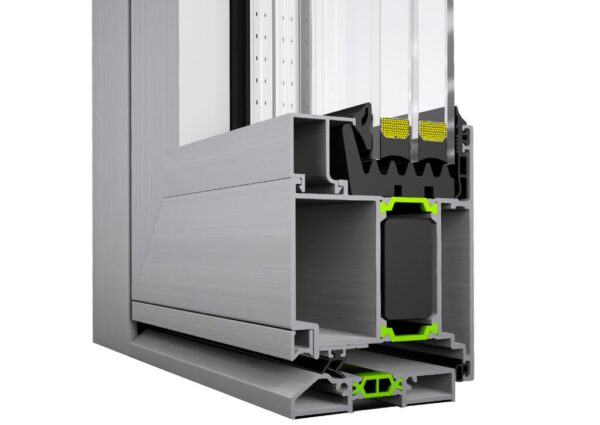

EXCLUSIVE FRONT DOORS (ETEM E75 THERMALLY PROFILE SYSTEM)
Special design of the Exclusive range is offered for front doors with minimal sill, multiple sealing points with very good insulation properties. Its massive installation depth, structural stability makes it reliable and safe solution for residential front doors or main entrances in administrative buildings. Excellent heat and sound insulation properties.
TECHNICAL SPECIFICATION:
Thermal Bridge: Yes
Construction width: 75 mm
Sealing: Double + Central Rebate
Standard Uf: 1.26 W/(m²K)
Ug: 2.9 W/(m²K)÷0.5 W/(m²K)
Typical Ug
DGU 4S: 1.3 W/(m²K)
DGU 4S+Ar: 1.0 W/(m²K)
Max Ug with 48 mm TGU 4s/k/4s+Ar: 0.5 W/(m²K)
Typical Uw: 1.13 W/(m²K)
Max Uw with PVC spacer: 0.88 W/(m²K)
Sound insulation: 42 dB frame/up to 35 dB on glazing
