EVOLUTION 6 chamber pvc profile

This made in Germany system is characterised with extremely high level of quality.

Description

EVOLUTION 6 chamber pvc profile (SALAMANDER PROFILE)

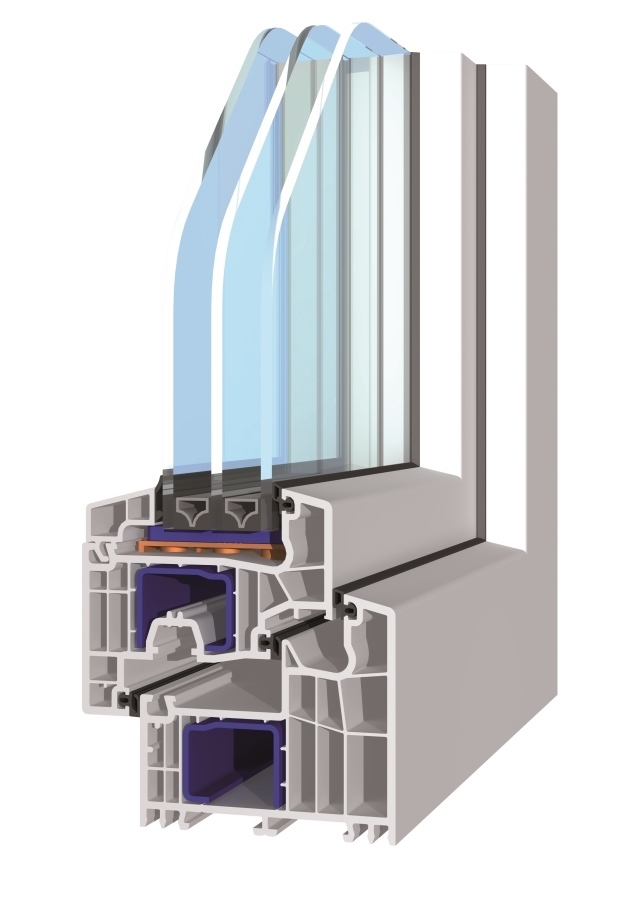

Proven world-class windows and doors that provide excellent energy efficiency and sound insulation. They arrive with huge construction width, optimised 6-chamber profile, central and rebate sealing system. The geometry of the profile system provides improved burglary protection levels. This product is suitable for passive energy efficient buildings.

Evolution product range is based on the Salamander blue EVOLUTION profile system. This made in Germany system is characterised with extremely high level of quality.

Evolution windows come with our high-quality glazing solutions. Evolution arrives with a choice of single, double, or triple glazed units. Various glass and coating solutions that control temperature, light, and noise are guaranteed as well.

TECHNICAL SPECIFIACTION:

Chambers: 6
Construction width: 92 mm
Sealing: Double + Central Rebate

Standard Uf: 1.0 W/(m²K)
Max Uf with thermally separated steel: 0.94 W/(m²K)

Ug: 2.9 W/(m²K)÷0.5 W/(m²K)

Typical Ug
DGU 4S: 1.3 W/(m²K)
DGU 4S+Ar: 1.0 W/(m²K)

Max Ug with 48 mm TGU 4s/k/4s+Ar: 0.5 W/(m²K)

Typical Uw: 1.35÷1.15 W/(m²K)
Max Uw with PVC spacer: 0.75 W/(m²K)

Sound insulation: 47dB frame/up to 35 dB on glazing

Additional information

Product Type

contract, pvc external doors-windows
