Description

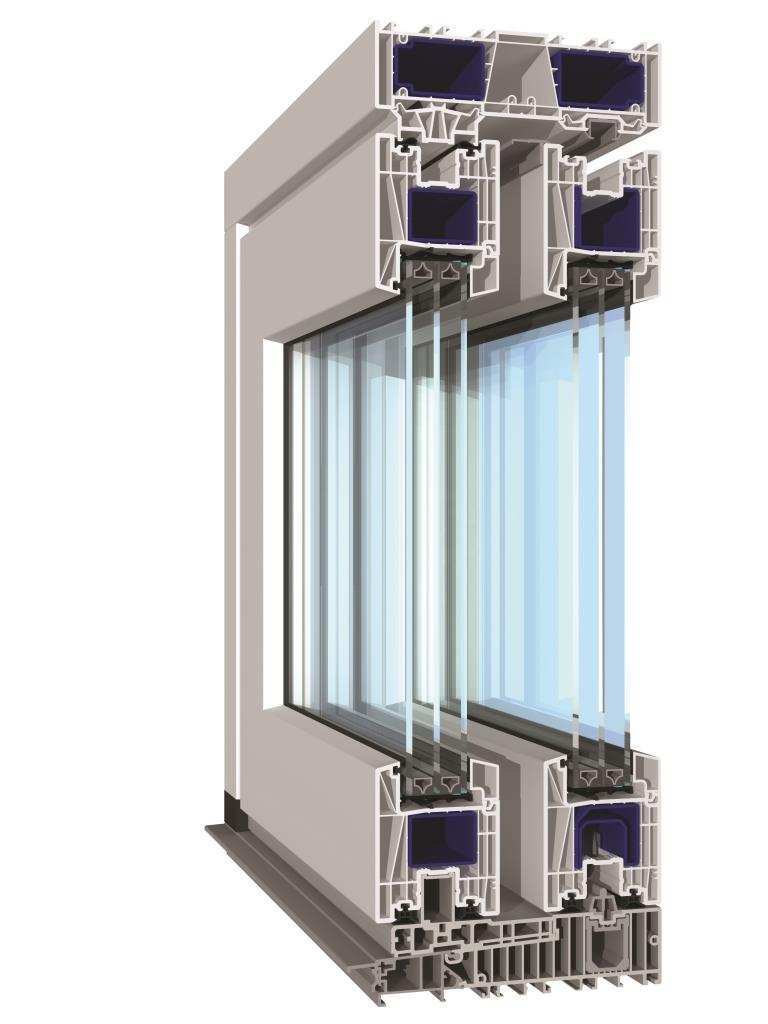

EVODRIVE PVC WINDOWS (Salamander Evolution Drive SF profile system).
Evodrive is the smart solution for someone who is looking for proven high-quality sliding windows and doors on a reasonable price. Contemporary slim design that matches perfectly Comfort product range.
Evodrive sliding systems come with our high-quality glazing solutions. They could be equipped with single, double or triple glazed units
with various glass and coating solutions that control temperature, light and noise.
TECHNICAL SPECIFICATION:
Frame construction width: 76 mm
Sash Construction width: 50 mm
Type: Slide door both casements parallel slidable
Standard Uf: 1.8 W/(m²K)
Ug: 2.9 W/(m²K)÷1.0 W/(m²K)
Typical Ug
DGU 4S: 1.3 W/(m²K)
DGU 4S+Ar: 1.0 W/(m²K)
Max Ug with 24 mm DGU 4s/k/4s+Ar: 1.0 W/(m²K)
Typical Uw: 1.6÷1.4 W/(m²K)
Max Uw with PVC spacer: 1.4 W/(m²K)
Sound insulation: 47dB frame/up to 35 dB on glazing
