ECONOMY aluminium system

Economy is based on the Etem e1000 profile system.

Description

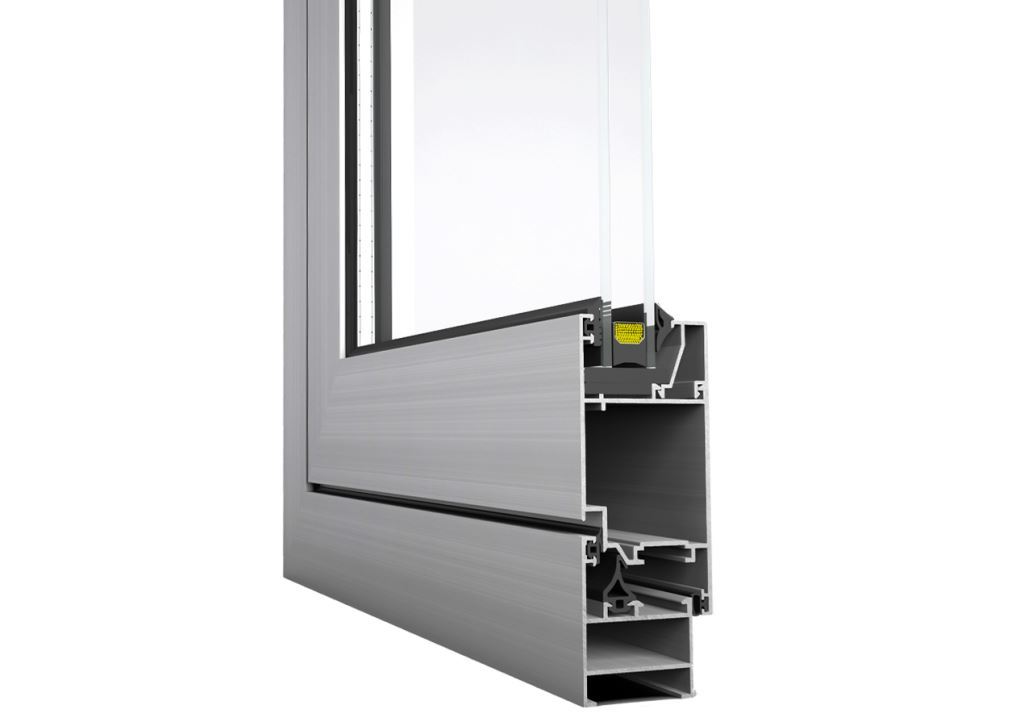

ECONOMY ALUMINIUM SYSTEM (ETEM E1000 PROFILE SYSTEM)

Economy range offers aluminium windows and doors that satisfy all requirements of the modern home in terms of construction, aesthetics and technology, without braking the bank.

Economy is based on the Etem e1000 profile system. The system is a cold aluminium profile designed as an optimal cost-effective solution for customers who look for aluminium windows and doors. Its attractive price and reliability makes it ideal for interior windows and doors in commercial and office buildings. Flat or rounded optics offer designers freedom to match with building design.

Economy windows and doors come with our high-quality glazing solutions. They could be equipped with single, double or triple glazed units with various glass and coating solutions that control temperature, light and noise.

TECHNICAL SPECIFICATION:

Thermal Bridge: No
Construction width: 45 mm
Sealing: Double + Central Rebate

Standard Uf: 1.9 W/(m²K)

Ug: 2.9 W/(m²K)÷0.6 W/(m²K)

Typical Ug
DGU 4S: 1.3 W/(m²K)
DGU 4S+Ar: 1.0 W/(m²K)

Max Ug with 48 mm TGU 4s/k/4s+Ar: 0.6 W/(m²K)

Typical Uw: 1.6 W/(m²K)
Max Uw with PVC spacer: 1.25 W/(m²K)

Sound insulation: 42dB frame/up to 35 dB on glazing







Additional information

Product Type

aluminium external doors-windows, contract
