Description
CLASSIC+ (Gealan S8000)
Ideal solution for customers looking for high quality windows and doors that fit the budget.

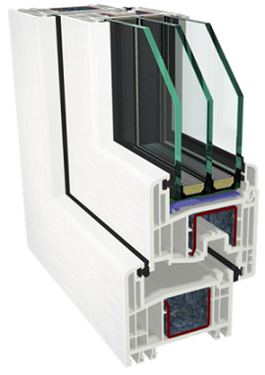

The solid six chambers construction and double rebate gaskets provide excellent heat and sound insulation.
TECHNICAL SPECIFICATION:
Chambers: 5
Construction width: 74 mm
Sealing: Double
Standard Uf: 1.3 W/(m²K)
Max Uf with STV® and IKD®: 1.1 W/(m²K)
Ug: 2.9 W/(m²K)÷0.5 W/(m²K)
Typical Ug
DGU 4S: 1.3 W/(m²K)
DGU 4S+Ar: 1.0 W/(m²K)
Max Ug with 45 mm TGU 4s+Ar: 0.6 W/(m²K)
Typical Uw: 1.45÷1.25 W/(m²K)
Max Uw with PVC spacer: 0.84 W/(m²K)
Sound insulation: 47dB frame/up to 35 dB on glazing
CLASSIC+ windows and doors come with our high-quality glazing solutions.
They could be equipped with single, double, or triple glazed units with various glass and coating solutions
that control temperature, light, and noise.
