Description

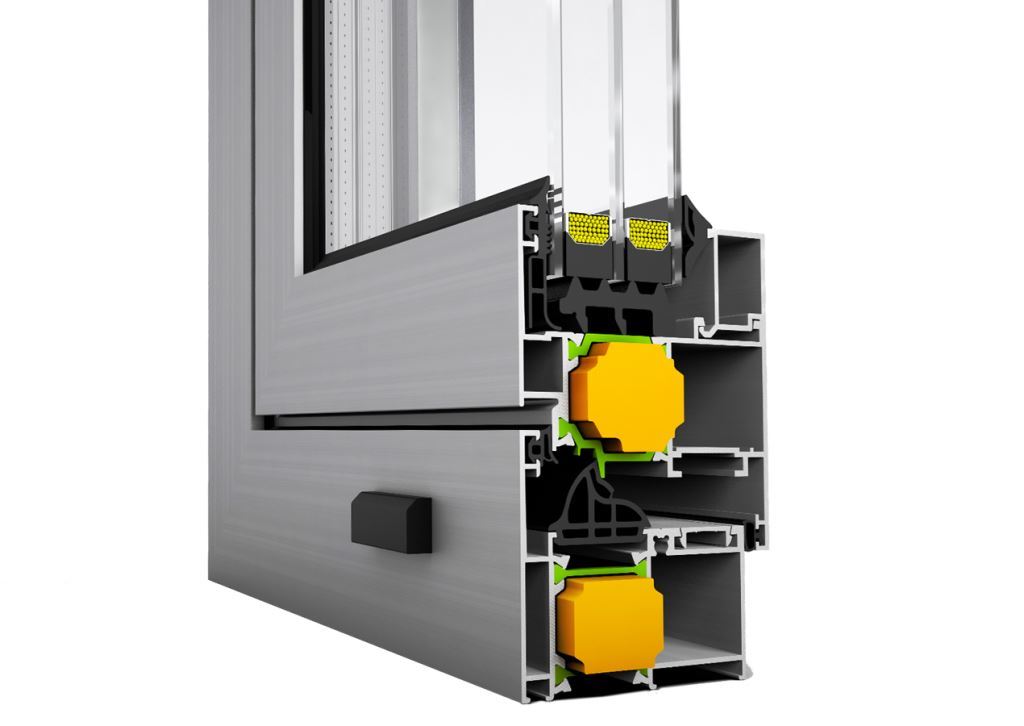

AVANTGARDE THERMALLY ALUMINIUM SYSTEM (ETEM E45 SYSTEM)
Advanced aluminium windows and doors with thermally separated profiles that provides excellent thermal insulation and comfort. Exceptional statics provide long lasting problem free operation.
Avantgarde windows and doors come with our high-quality glazing solutions. They could be equipped with single, double or triple glazed units with various glass and coating solutions that control temperature, light and noise.
Thermal Bridge: Yes
Construction width: 60 mm flat or 67.5 mm rounded
Sealing: Double + Central Rebate
Standard Uf: 1.9 W/(m²K)
Ug: 2.9 W/(m²K)÷0.5 W/(m²K)
Typical Ug
DGU 4S: 1.3 W/(m²K)
DGU 4S+Ar: 1.0 W/(m²K)
Max Ug with 48 mm TGU 4s/k/4s+Ar: 0.5 W/(m²K)
Typical Uw: 1.45 W/(m²K)
Max Uw with PVC spacer: 1.2 W/(m²K)
Sound insulation: 42 dB frame/up to 35 dB on glazing
